NEUTRALOX® Photoionisation: Australia
Treated media: Municipal wastewater
Flow rate: 15,000 m³/h
Substances: Hydrogen Sulfide
Processes: Photoionisation
Commissioning: 2009
KF Company: Neutralox GmbH
Our first installation on the Australian continent has been designed for handling 15,000 m³/h originating from the inlet works of a new wwtp.

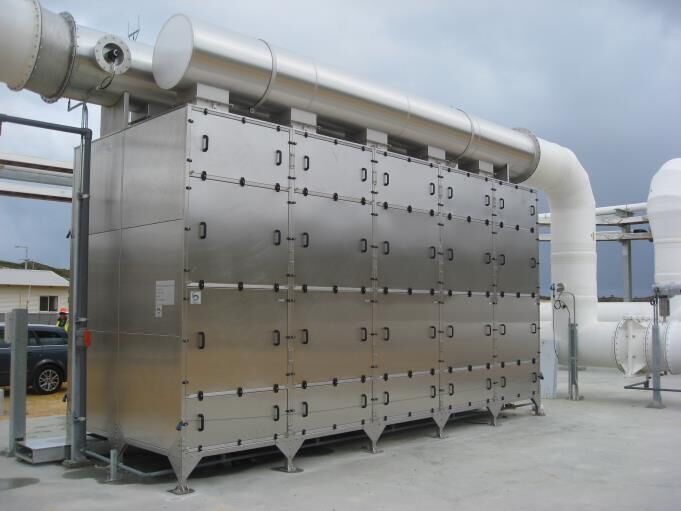

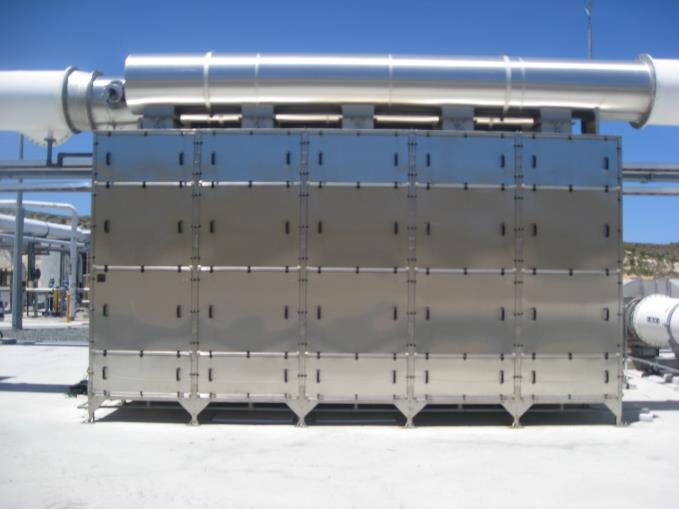

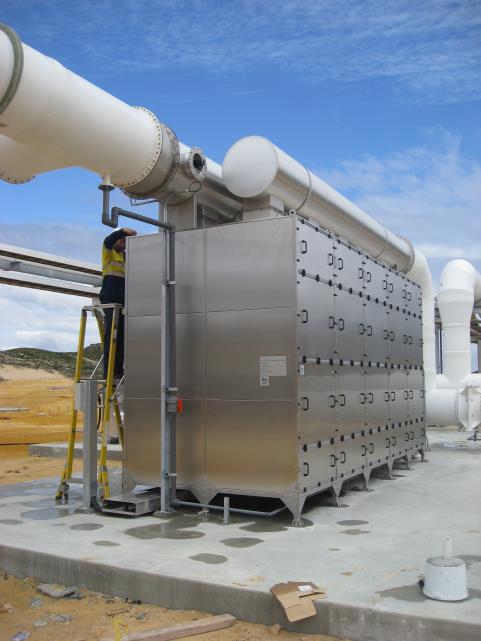

The odor control unit consists of a number of compartments, connected in parallel. The individual compartments could be put ON and OFF as required. Being the first Neutralox installation in Australia, the odor control unit had been under intensive investigation and control by local authorities. Odour and substances analysis had been carried out and published.
After completion of the installation, different maintenance companies were taking care of the odour control system. All frequently required consumables are sourced locally, ever since.
ATEX: Zone 2
H₂S Input: 10 - 25 ppm H₂S
Power demand: 15 KW
Dimensions: 5,600 x 2,190 x 3,190 mm
